• boost restaurant efficiency

    Boost Restaurant Efficiency with Crysalli Beverage Dispensing Systems

    Increase your efficiency, reduce waste, and elevate the dining experience for your customers. Self-service or bottle service, the choice is yours. Get ready to streamline your operations, save time, and make a positive impact on the environment!

  • Contact Us

    Crysalli Main Office

    Address: 1739 Sabre Street Hayward, CA 94545

    Phone:  (510) 732-0100

    Crysalli Beverage Systems

    Delivering the world’s most precious gift right from your municipal water plumbed into your facility or home.

  • Countertops

    CR-1-iN2

    cr804023ProFusion Countertop System

    NBeverages on Tap

    • Nitrogenated and Still Beverage on Tap.
    • Flash chills ambient temp keged beverages.
    • The system utilizes one keg of cold brew coffee, tea or your craft beverage of choice to dispense two different style beverages.
    • Simple set-up: one keg connection and one gas connection.
    • Integrated ProFusion injector nitrogenates the beverage at the time of dispense
    • Two on-board regulators feed both the keg and injector pressures.
    • Built in stainless steel particulate filter, 50 micron, washable and reusable.
    • Optional custom tap handles available.

    Specifications

    • 50, 12oz cups per hour @<400F
    • Self-contained refrigeration system
    • Compressor: 1/5 H.P.
    • Refrigerant: R134a CFC-free
    • Operating temperature range: 400F-1000F
    • Electrical: 115VAC/60Hz/1 Phase
    • 3.4 AMPS
    • Minimum circuit breaker size: 15 amps
    • BTU: 2,200 per hour average
    • Water bath: 5 gallons
    • Ice bank: 10 lbs
    • Weight: 75
    • Cup clearance: 8.5”
    • 12.3754”W x 27.5”D x 25”H
    • *Actual height varies depending on tap handle style

      pdf Spec Sheet (1008 KB)

      pdf ProFusion Brochure (3.30 MB)

    archive CR 1 iN2 2P CAD Files (78 KB)

    default QF Crysalli CR 1 iN2 2P REVIT File (948 KB)

  • Countertops

    CR-24FCP

    cr24fcpWater Filter System

  • Countertops

    CR-804-001

    cr804001Low Volume Water Boost System

  • Countertops

    CR-804-023

    cr804023Water Boost System

  • Countertops

    CR-804-026

    cr804026Water Boost System

  • Regulators

    CR-CWB1

    CR cwb1Single Cylinder Safety Restraint Wall Bracket

  • Regulators

    CR-CWB2

    CR cwb2Dual Cylinder Safety Restraint Wall Bracket

  • Regulators

    CR-PC160-14FCV

    CR PC160 14FCPrimary high pressure CO2 regulator

    For CO2 cylinder use

  • Regulators

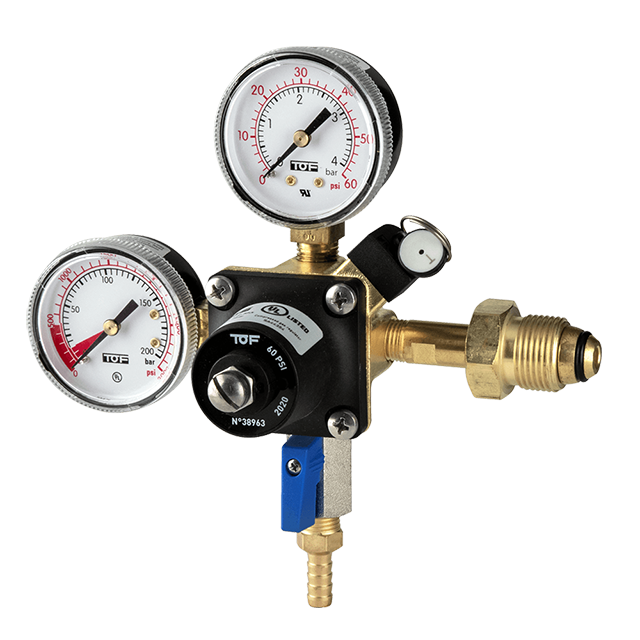

    CR-PN60-516BSO

    CR PN60 516BSOPrimary N2 regulator

    For nitrogen gas cylinder use

  • Regulators

    CR-S115-14FV

    CR S115Secondary high pressure CO2 regulator

    For bulk CO2 or split system use

  • Countertops

    CR-SDL-1

    cr804026Universal, lever activated, faucet assembly

    Sanitary dispense lever compatible with:

    X0101-B-HEX-SC

    Black speedy valve, self closing bent nozzle, hex adjuster.

    Standard faucet on CR-1, CR-2 and other countertop Crysalli models and the CM-V2W tower.

  • Countertops

    CR-SDL-SSX1

    cr804026Lever activated, faucet assembly

    Sanitary dispense lever with stainless steel faucet:

    Rigid stainless steel lever, extends 1.75" below nozzle

    Self closing, spring loaded

    Downward pointing nozzle

    Comes with optional stainless steel tap cap

    Use on custom draft towers and as a retrofit kit for CBR towers

  • embrace the sip of excellence

    Embrace the Sip of Excellence: The Importance of High-Quality Beverage Dispensing Equipment!

    Choosing the right beverage dispensing equipment is crucial for businesses. Not only does it enhance the quality of drinks, but it also plays a significant role in reducing waste and promoting sustainability. In this article, we'll dive into the importance of high-quality beverage dispensing equipment, with a special focus on Crysalli as a brand that is revolutionizing the industry and making a positive impact on both customers and the planet!

  • Countertops

    iN2-DD2P

    cr804023ProFusion Beverage Dispensing System

    Nand COBeverages on Tap

    • Plug and play; factory assembled system.
    • The ProFusion system uses one cold keg of cold brew coffee, tea or your craft beverage of choice and dispenses two different style beverages from a single keg.
    • Nitrogenated or lightly carbonated, and Still Beverage on Tap.
    • Simple set-up: one keg connection and one gas connection.
    • ProFusion Injector equipped with two secondary regulators, feeding both the keg and injector.
    • Built in stainless steel particulate filter, 50 micron, washable and reusable.
    • Optional custom tap handles available.

    Features

    • Two tap, air cooled, column tower with stainless steel faucets
    • 24" width
    • 30.125" depth
    • 49.25" height*
    • ** Actual height varies depending on tap handle style
    • Weight: 174 lbs
    • iN2-2P Injector, two product device
    • N2 primary regulator
    • Available with premix tank quick connect couplers or with D style keg coupler

    DD24HC direct draw cooler specifications:

    • Volts: 115VAC/60Hz/1 Phase
    • 4 AMPS
    • Certifications for DD24HC:

     certifications



      pdf Spec Sheet (667 KB)

      pdf Quick Installation Guide (2.79 MB)

      pdf ProFusion Brochure (3.30 MB)

  • Countertops

    iN2-TK2P

    cr804023ProFusion Beverage Dispensing Tapping Kit

    N2 and CO2 beverages on tap

    • The iN2-TK2P tapping kit is designed to convert your existing kegorator or back bar cooler into a ProFusion beverage dispensing system.
    • The ProFusion system uses one cold keg of cold brew coffee, tea or your craft beverage of choice and dispenses two different style beverages from a single keg.
    • Nitrogenated or lightly carbonated, and Still Beverage on Tap.
    • Simple set-up configuration: one keg connection, two outlets. One gas connection feeds both the system and keg (each with their own pressure control).
    • High visibility and easy accessible particulate filter.
    • Compact, thin design that can easily fit in coolers and not take up excessive space.



    Specifications

    iN2-2P Specifications:

    • 10.5" width
    • 4.5" depth
    • 12.75" height
    • One gas inlet, dual gas control for keg and injector pressures
    • One product keg inlet, two product outlets
    • Built in stainless steel particulate filter, 50 micron, washable and reusable
    • Must be located in a refrigerated space within five feet of dispensing tower
    • Liquid and gas inlet/outlet ports are on one side of the iN2-2P injector

    iN2-V2 two tap, column tower specifications:

    • Two stainless steel faucets
    • Insulated and air cooled
    • 3/8" barrier hoses
    • Supplied with fittings and hose kit

    Tapping Kit specifications:

    • N2 primary regulator included
    • Available with premix tank quick connect couplers or with D style keg couplers



      pdf Spec Sheet (864 KB)

      pdf Quick Installation Guide (2.79 MB)

      pdf ProFusion Brochure (3.30 MB)

  • innovative design and sustainability

    Innovative Design and Sustainability: How Crysalli Beverage Systems Align with Modern Architecture

    Explore the perfect synergy of innovative design and sustainability with Crysalli Beverage Systems. Discover how our cutting-edge dispensing solutions seamlessly integrate into modern architecture while reducing plastic waste. Join us in shaping a more sustainable future, one sip at a time!

  • summer beverages

    Quenching the Heat: Top Beverage Equipment for Summer

    Elevate your summer beverage service with the must-have equipment to keep your guests refreshed and your drinks in high demand.

  • sip smile save say no to plastic waste

    Sip, Smile, Save: Say Goodbye to Plastic Waste

    Looking for a sustainable beverage solution? Crysalli Beverage Systems help businesses reduce plastic waste and embrace a more eco-friendly approach. With our range of innovative dispensing systems, you can serve still or sparkling water, soda, cold brew, and more—all without single-use plastic bottles.

Page 1 of 2
