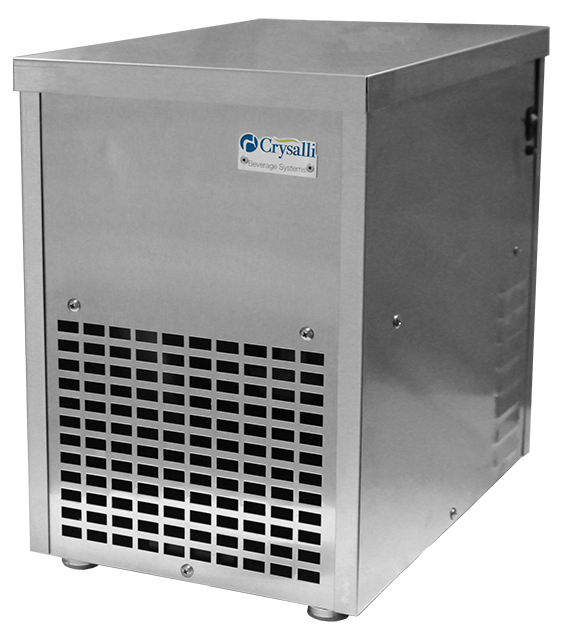

CBDS-CP2000Remote Beverage Chiller

Fountain Dispense Cold Carb Chiller

  • Undercounter recirculation system keeps water and syrup chilled from the chiller to the beverage dispenser
  • Reduced ice consumption compared to cold plate systems
  • Durable, easy to clean, stainless steel cabinet
  • 304 stainless steel brushed finish panels
  • Reduced counter space need compared to cold plate systems







Specifications

  • Dispense capacity: 1, 12 oz drink per minute (Max capacity: 50, 12 oz drinks at this duty cycle)
  • Flow rate: 3 oz per second
  • Dispense temperature: <40°F
  • Self-contained refrigeration system
  • Compressor: 1/9 H.P.
  • Refrigerant: R134a CFC-free
  • Electrical: 120 VAC
  • Minimum amps: 4.5
  • Cold carbonation technology
  • Carbonator pump: 1 GPM (max pressure 160 PSI)
  • Built-in re-circulatory pump allows for an installation distance up to 6’ between chiller and dispenser
  • Water Bath: 2.5 Gallons
  • Ice Bank: 6 lbs
  • Dry Weight: 80 lbs
  • 11.75”W x 17.5”D x 16.5”H
  • CBDS-P2000-R-UC-BH-R4 and R-6 are reverse osmosis compatible

   pdf Spec Sheet (674 KB)
