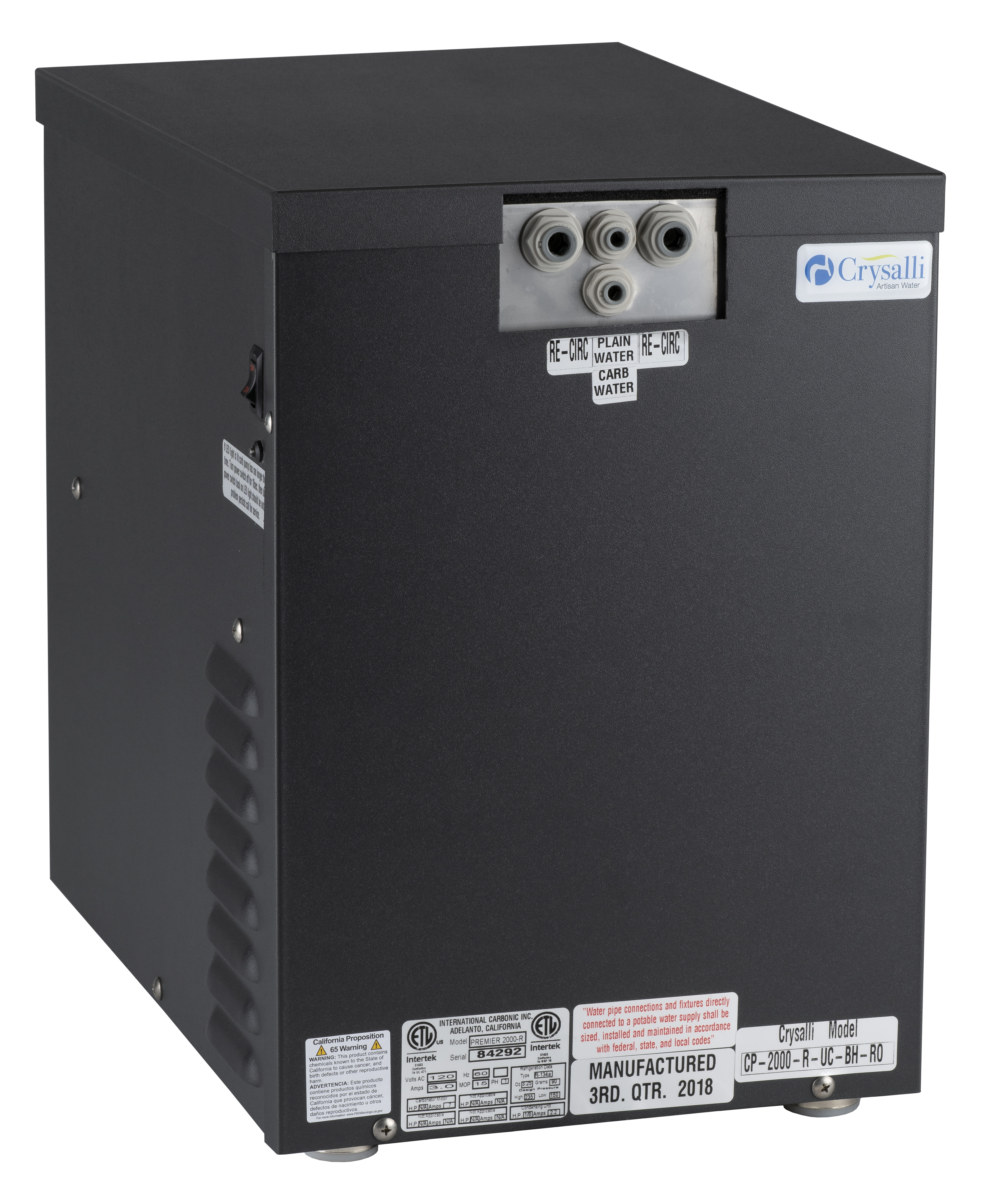

Low-Volume Undercounter Sparkling & Chilled Still Water Chiller
Low-volume undercounter chiller designed to deliver cold-carbonated sparkling water and chilled still water from a compact, self-contained unit.
Built for installation up to 6 feet from the draft tower.
Suitable for offices, hotel suites, wineries, and residential settings where space, presentation, and chilled performance all matter.
Key Features
Performance & Capability
- Delivers sparkling and chilled still water from a single undercounter unit
- Produces up to 50 12-ounce drinks per hour at temperatures below 40°F
- Built-in re-circulatory pump supports installations up to 6 feet between tower and chiller
- High-efficiency self-contained refrigeration supports reliable chilled dispense
- Suitable for low-volume hospitality and residential applications
Design & Build
- Compact undercounter footprint for clean, discreet installation
- Stainless steel water chilling coil
- Black vinyl exterior
- Designed for use with CBR series draft towers and drain pans
- Rear exhaust and side-panel air intake for undercounter ventilation planning
Technical Specifications
| Specification | Details |
|---|---|
| Capacity | 50 12-ounce drinks per hour at <40°F |
| Beverage Type | Sparkling and chilled still water |
| Installation Type | Undercounter, up to 6' from draft tower |
| Refrigeration | Self-contained |
| Compressor | 1/9 H.P. |
| Refrigerant | R290 |
| Carbonator | 1.2 amp diaphragm pump |
| Electrical | 120V - 3.62 Amps |
| Operating Temperature | 40°F-100°F |
| Water Bath | 2.5 gallons |
| Ice Bank | 6 lbs |
| Width | 11.75" |
| Depth | 17.5" |
| Height | 16.5" |
| Weight | 80 lbs |
| Exterior | Black vinyl |
| Chilling Coil | Stainless steel |
| Application Fit | Office, hotel suites, wineries, residential |
Accessories & Options
- Water filter system: CR-14FC or CR-14FCP
- Install kit: CR-KIT-CPUC
- CO2 regulators: CR-PC160-14FCV, CR-S115-14FCV
- Wall brackets:CR-CWB1, CR-CWB2
- Ventilation: CR-ABUCM, CR-TFB1
- Use with CBR series draft towers and drain pans
Spec Sheet | Install Guide | archive CAD Files(93 KB) | default REVIT File(320 KB)
